AR1500,AR2000 Regulator

AR1500,AR2000 Regulator


1. Product Feature

1) The structure is delicate and compact, which is convenient for installation and application.

2) The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3) In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

2. Symbol

Symbol of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination

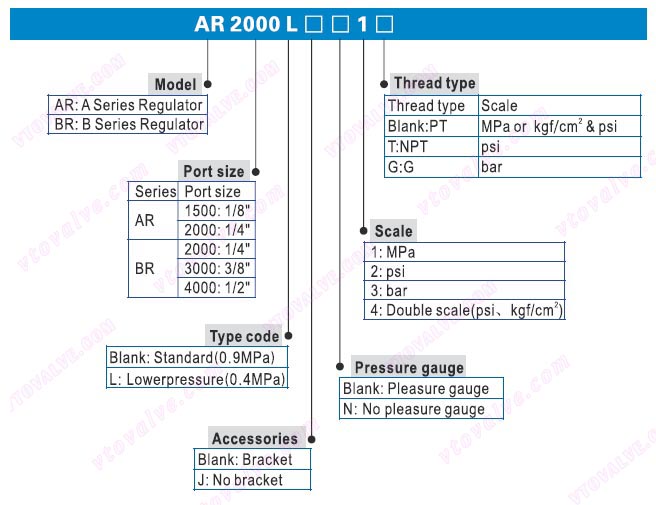

3. Ordering Code

Ordering Code of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination

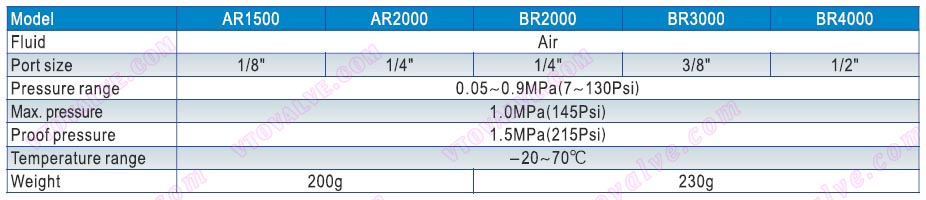

4. Specification

Specification of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination

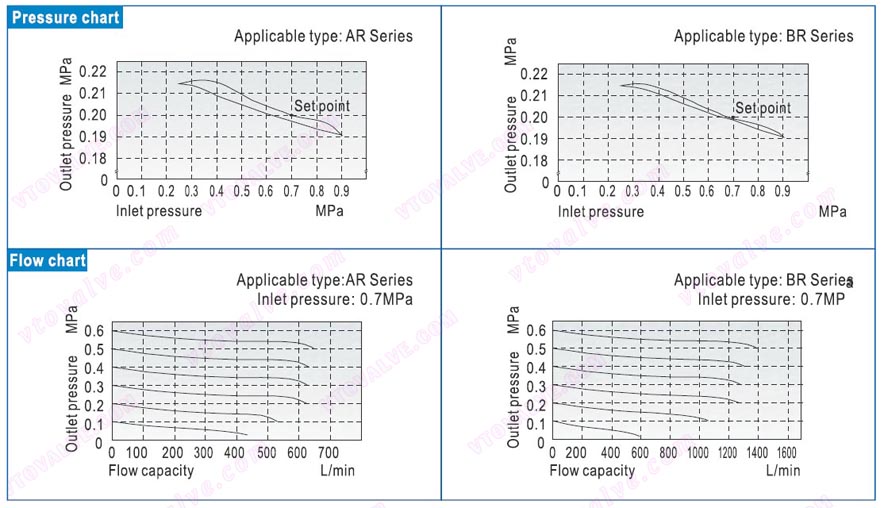

5. Pressure and Feature of Flow

Pressure and Feature of Flow of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination

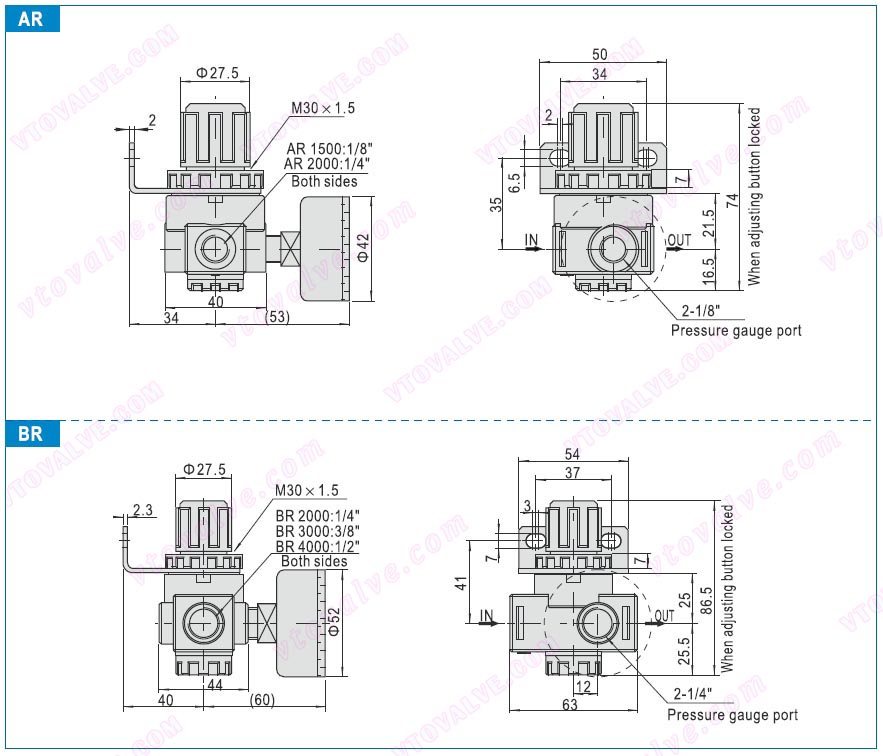

6. Dimensions

Dimensions of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination

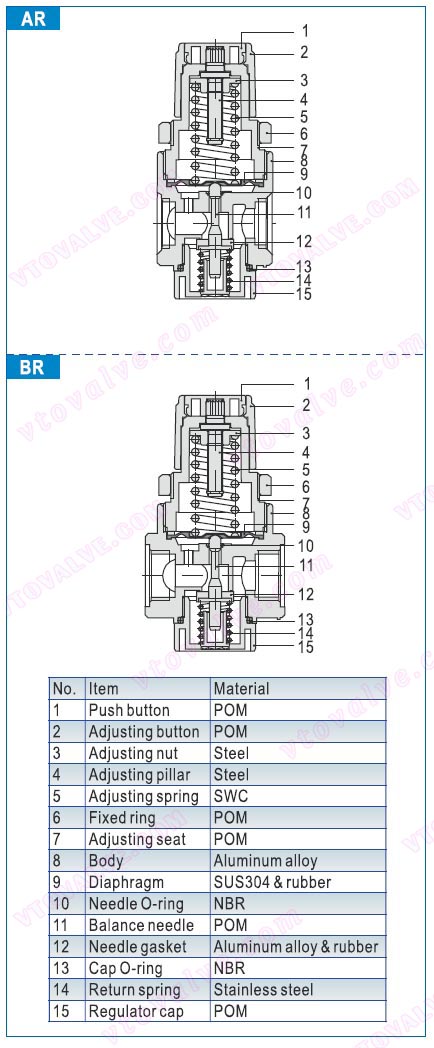

7. Inner Structure and Materials of Main Parts

Inner Structure of AR1500,AR2000,BR2000,BR3000,BR4000 F.R.L combination
