ALS200M2 Limit Switch Box, ALS200M2 Series Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS200M2
Overview
ALS200M2 Series Limit Switch Box (Valve Monitor) is a rotary position indication device. Armed with mechanical switch this device can senses mechanical position (on/off) valve for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum dichromate conversion with polyester powder coating and O-ring sealed |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Area Classification | Standard |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 8 |
| Mounting Bracket | MB - 2.3: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Sensor: Honeywell Mechanical Switches | |
| Model No. | M2(2SPDT) |
| Operating Voltage | Max: 5A 125~250 VAC |
| Operating Temp. | -25℃ ~ 85℃ |

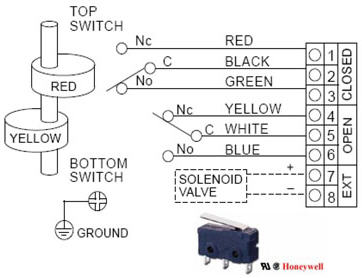

Wiring Diagram

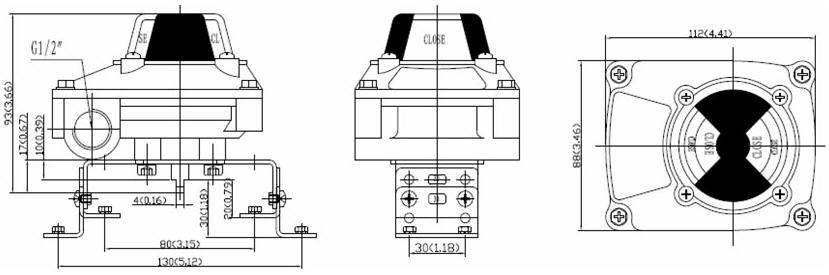

Drawing and Dimension
