ALS300PA23F Limit Switch Box, ALS300PA23F Valve Position Transmitter Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS300PA23F
Overview
The ALS300PA23F Limit Switch Box (Valve Position Transmitter Monitor) is a rotary position indication device. Armed with inductive sensors and position transmitter, this device can sense mechanical position (on/off) as well as the position change (0°~90°) of valve and output 4~20mA for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum: O-ring sealed |
| Coating | Dichromate conversion with polyester powder coating |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Area Classification | Standard |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 10 |
| Mounting Bracket | MB - 3.4: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Position Transmitter (F) | ||
| Input Type | 2 wire |  |
| Input Signals | 0°~90° | |
| Output Signals | 4~20mA | |
| Adjustable Range | Zero:±10% Span: 30~150% | |
| Linearity | ±1% | |
| Sensitivity | ±0.2% | |
| Supply Voltage | 15~30VDC | |
| Sensor: 2 Inductive Sensors (3 wire) | ||
| Model No. | PA23 |  |
| Operating Voltage | 10~30 VDC, <=150mA | |
| Operating Temp. | -25℃~+85℃ | |

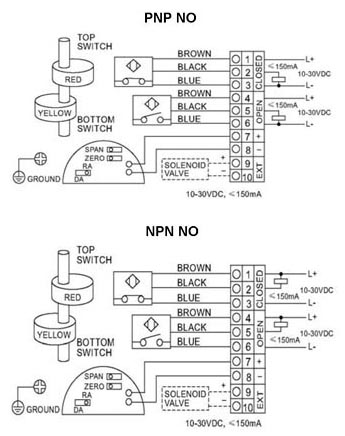

Wiring Diagram

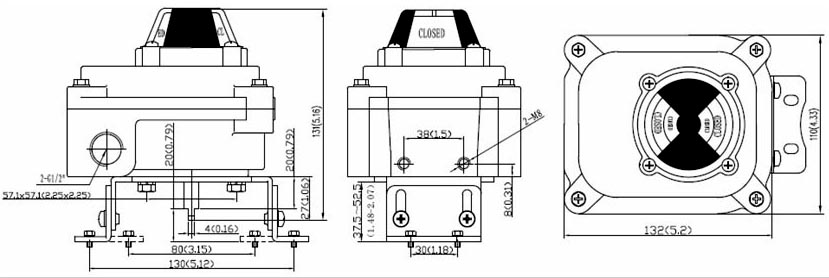

Drawing and Dimension
