ALS400M2F Limit Switch Box, ALS400M2F Valve Position Transmitter Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS400M2F
Overview
The ALS400M2F Limit Switch Box (Valve Position Transmitter Monitor) is a rotary position indication device suited for HAZARDOUS area (Exd II CT6). Armed with mechanical switch and position transmitter, this device can sense mechanical position (on/off) as well as the position change (0°~90°) of valve and output 4~20mA for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum: O-ring sealed |
| Coating | Dichromate conversion with polyester powder coating |
| O-rings | Buna N |
| Environment | NEMA 4, 4X, 7, 8, IP66 |
| Area Classification | Class I Div 1&2 Groups A,B,C and D, Ex d II CT6, Ex II 2G Ex d II CT6 |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, 3/4" NPT, 3/4" BSPP or M20-1.5 | |
| Terminal Strip Contacts | 10 |
| Mounting Bracket | MB - 3.4: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Position Transmitter (F) | ||
| Input Type | 2 wire |  |
| Input Signals | 0°~90° | |
| Output Signals | 4~20mA | |
| Adjustable Range | Zero:±10% Span: 30~150% | |
| Linearity | ±1% | |
| Sensitivity | ±0.2% | |
| Supply Voltage | 15~30VDC | |
| Sensor: 2 SPDT CROUZET Mechanical Switches | ||
| Model No. | M2 (2 SPDT) |  |
| Operating Voltage | Max: 15A 125~250VAC | |
| Operating Temp. | -25℃~+85℃ | |

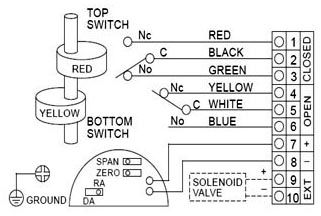

Wiring Diagram

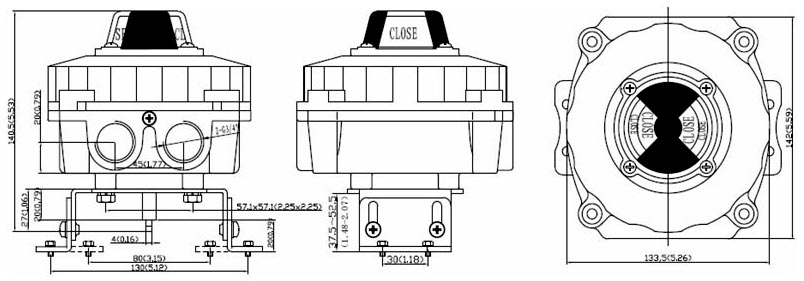

Drawing and Dimension
