Current Location: vtovalve >> Products >> Accessories >> Limit Switch >> BAPL210N Limit Switch Box / Valve Position Monitor
BAPL210N Limit Switch Box / Valve Position Monitor

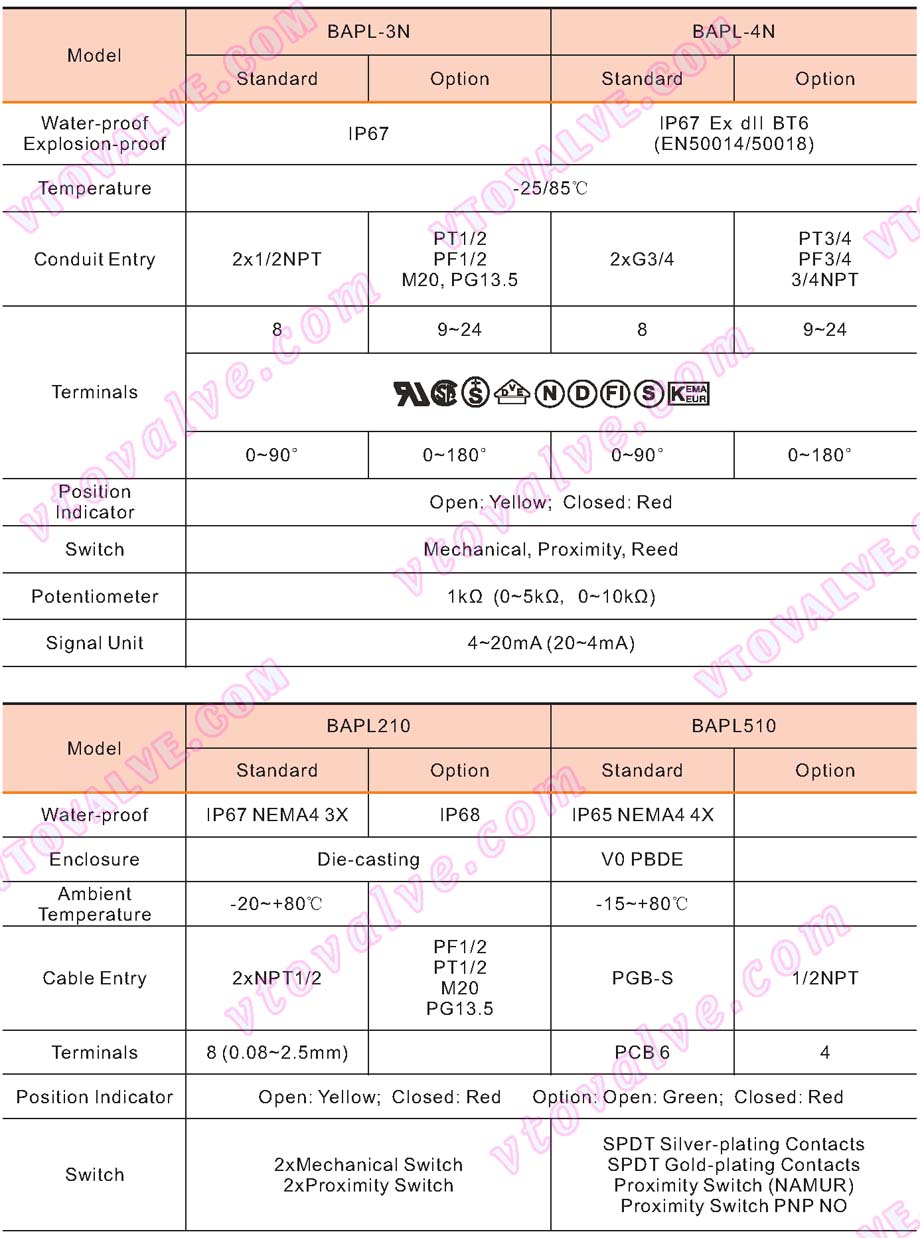

1. Basic Configurations of BAPL Series Limit Switch Box

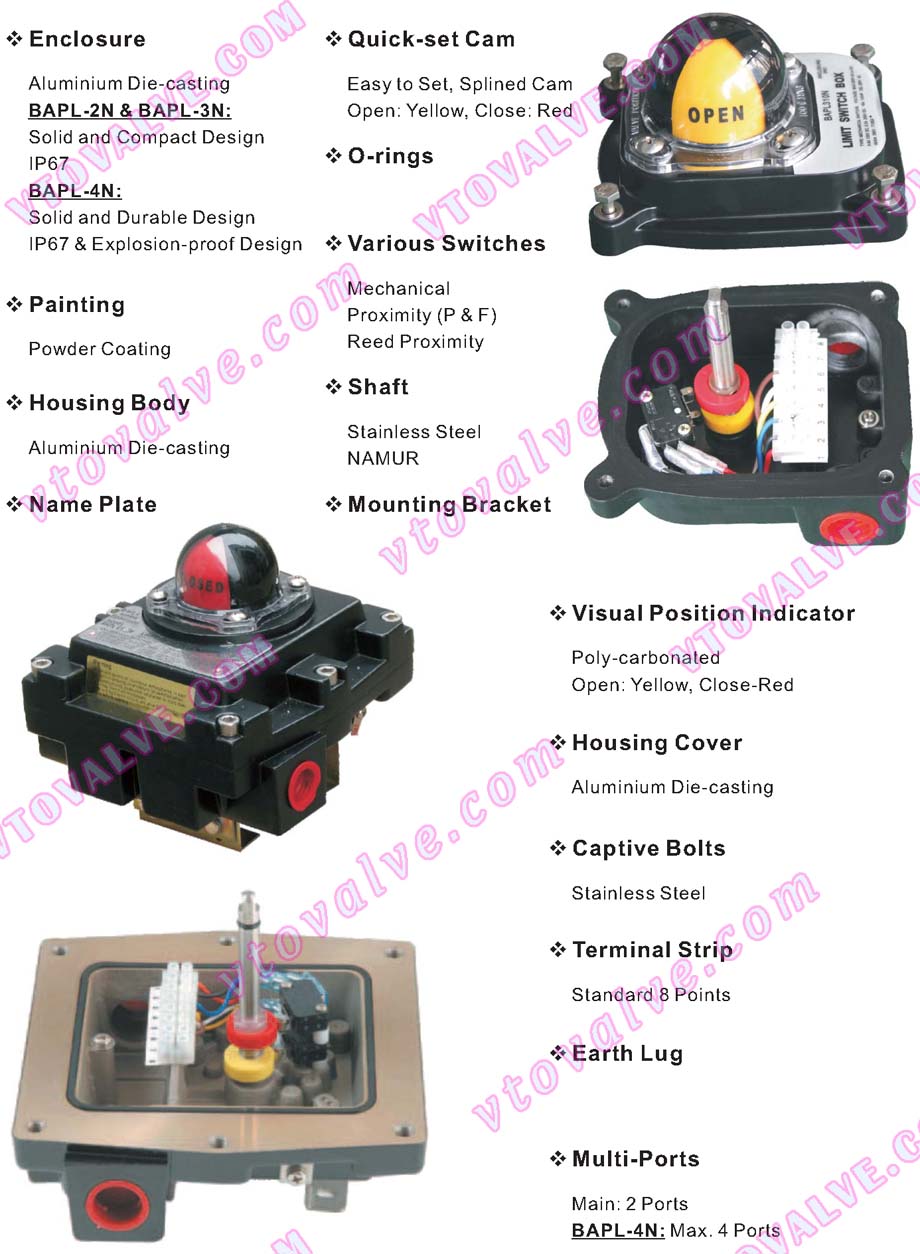

2. Structure of BAPL Series Limit Switch Box

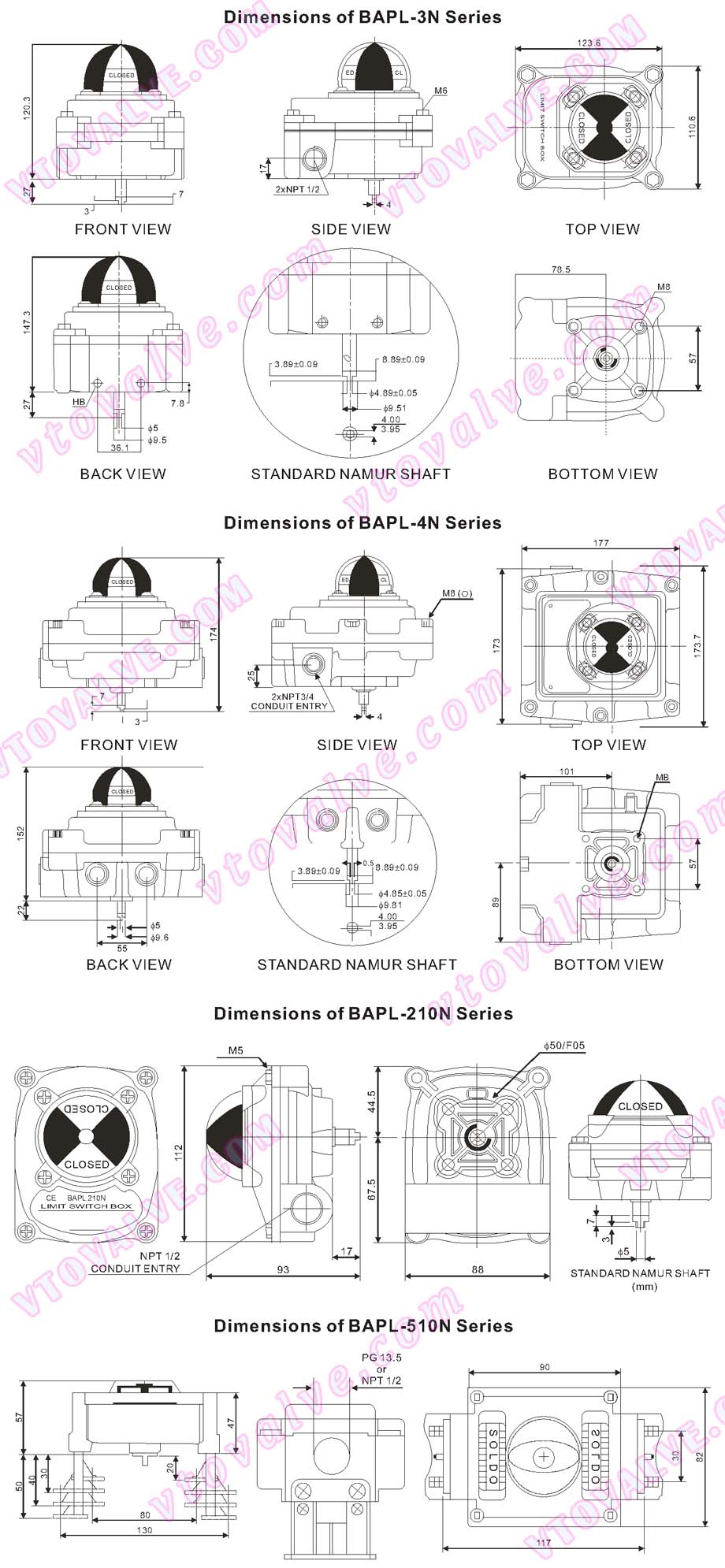

3. Dimensions of BAPL Series Limit Switch Box

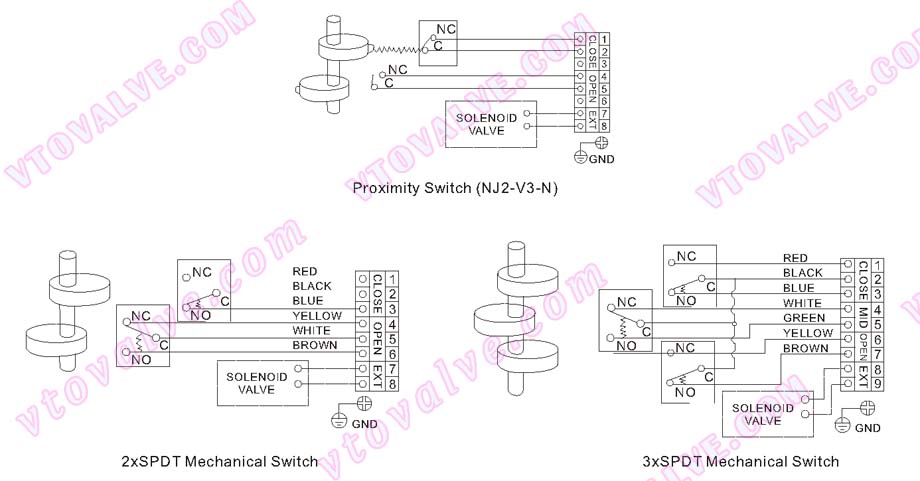

4. Wiring Diagram of BAPL Series Limit Switch Box

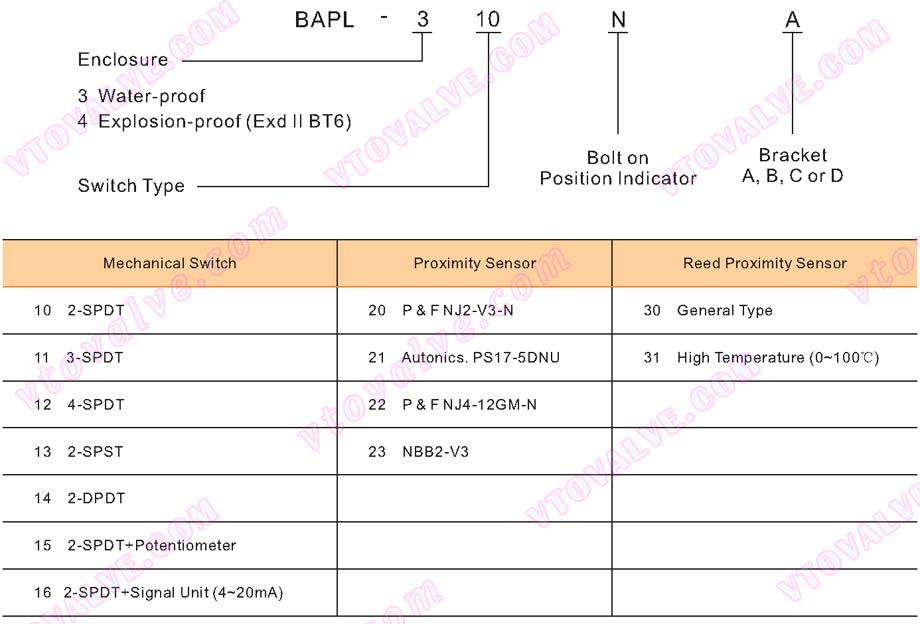

5. Ordering Information of BAPL Series Limit Switch Box

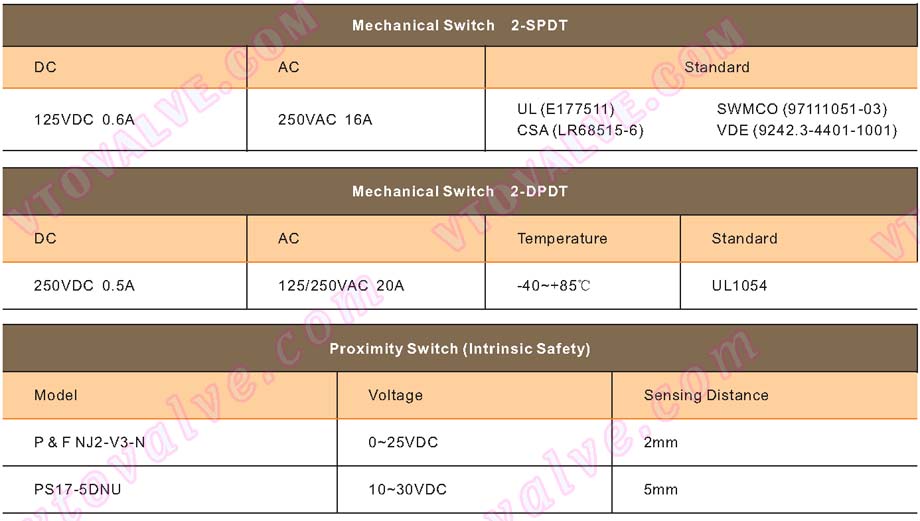

6. Switch of BAPL Series Limit Switch Box

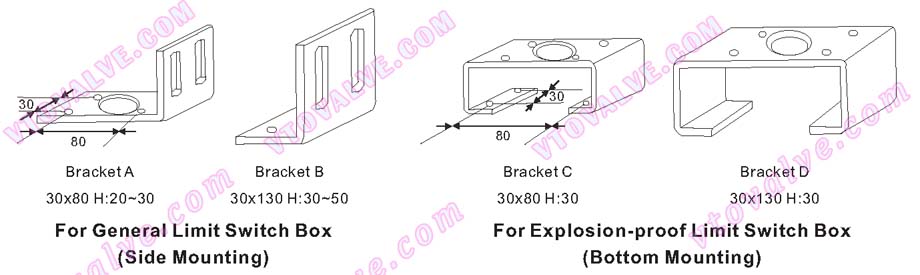

7. Bracket A, B, C and D of BAPL Series Limit Switch Box

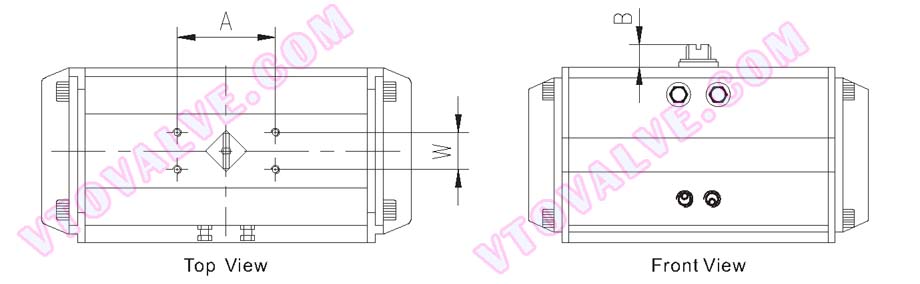

Note: Please measure your actuator, and provide us the values of A, W and B (see the following), if you are not sure which kind of bracket do you need.

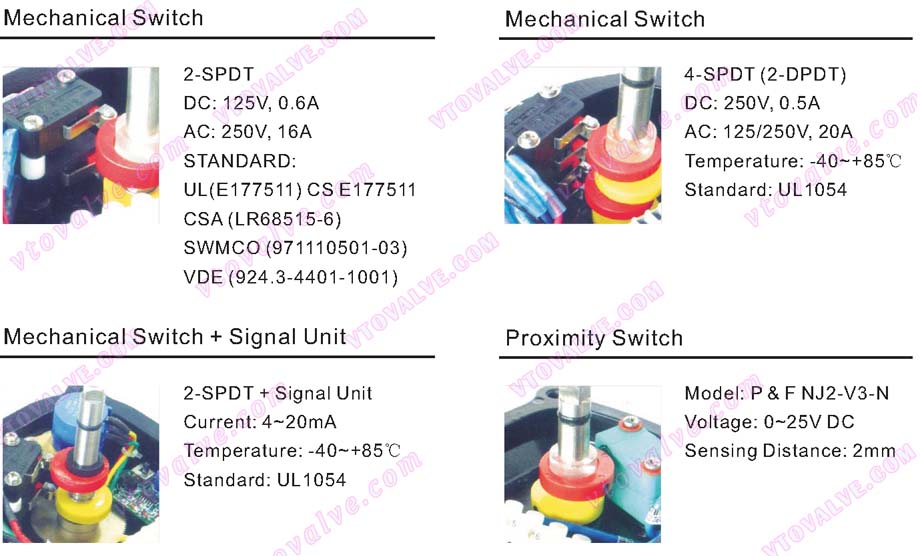

8. Internal Construction of BAPL Series Limit Switch Box
